SUMMARY Who this is for: Stone fabricators who want to understand what a wet grinder actually does, when to use one, and what separates a shop-grade tool from a general-purpose angle grinder. Key Takeaways:
What you will find inside:
|
What a Wet Stone Grinder Is Actually Doing
The name covers a lot of ground. Wet stone grinders get used for edge shaping, profile cutting, sink cutouts, surface leveling, and any situation where you need to remove stone material quickly and cleanly. The "wet" part is not optional. It is fundamental to how the tool performs.
Here is the basic mechanism. A pneumatic or electric motor drives a spindle at high RPM, typically 8,000 to 11,000 RPM for a shop grinder. Diamond cup wheels or disc attachments mounted to that spindle abrade the stone surface, pulling off material with each pass. The higher RPM is what gives you the cutting speed you need to shape granite, quartz, or porcelain efficiently.
Without water in the equation, that process would generate heat fast enough to crack the stone surface, burn your diamond attachments, and push dangerous silica dust into the air. Water takes all three of those problems off the table.
The Three Jobs Water Is Doing
Fabricators who are new to wet tooling sometimes treat the water as an afterthought. It is not. It is doing three jobs simultaneously, and if any one of them stops working, the quality of the result drops fast.
Cooling the Stone
Granite is hard. Diamond abrasive against granite surface generates friction heat quickly. That heat does not just cause surface burns, which are visible as dark scorch marks and are a nightmare to rework. It also causes micro-cracking in the stone structure that shows up later under stress. Water dissipates that heat continuously, keeping the stone and the grinding attachment within a safe temperature range throughout the pass.
Flushing the Slurry
As the diamond wheel removes stone material, it creates a slurry of ground stone particles and worn diamond. That slurry has to go somewhere. If it builds up between the pad and the stone, it starts acting as an insulator and reduces cutting efficiency. Water moves it off the work surface constantly, so the diamond is always making clean contact with fresh stone.
Managing Silica Dust
This one matters from a safety standpoint. Dry grinding of granite and similar stones creates fine silica dust that is a serious respiratory hazard with cumulative exposure. Water virtually eliminates airborne silica during grinding by capturing the particles in the slurry before they become airborne. For anyone working in a shop environment with regular grinding work, wet tooling is not just a quality choice. It is the right safety practice.
Wet Grinder vs. Wet Polisher: The Practical Difference
These are not interchangeable. Both use water. Both work on stone. The difference is purpose and RPM.
A wet grinder runs at 10,000 RPM and removes material. A wet polisher runs at 1,500 to 4,500 RPM and refines a surface. The fabrication workflow is always grinder first, polisher second. The grinder gets your edge to the right profile and removes saw marks, chips, and rough texture. The polisher takes that surface through the grit progression to a finished gloss.
Trying to use a polisher for grinding work is slow and hard on pads. Trying to use a grinder for polishing is a fast way to destroy a surface. The tools are built for different stages of the same process.
For more on how these two tools work together in a fabrication sequence, check the Samurai blog post on the comparison:
Wet Polisher vs. Wet Grinder: Precision Tools for a Flawless Finish
When Fabricators Actually Reach for the Grinder
There are specific points in the fabrication workflow where the wet grinder is the right tool and nothing else gets the job done as efficiently.
Edge Profiling
After a bridge saw cut, edges are square, rough, and covered in saw blade marks. The grinder does the initial shaping, whether that is easing the edge, cutting a bevel, or starting a bullnose profile. This is heavy material removal work that requires the RPM and diamond wheel geometry that a grinder provides.
Sink and Faucet Cutouts
Core drilling holes for faucets and shaping cutouts for undermount sinks both require a grinder. Diamond core bits mounted to the spindle drill cleanly through the slab with water cooling the bit throughout. Starting at a slight angle and then going perpendicular, as professionals typically work it, prevents skipping and produces a clean entry. The ST-358's center water feed keeps the bit cool through the full cut.
Surface Leveling and Seam Work
When two pieces meet at a seam, there is often a slight height difference. Running the grinder across the seam levels it before polishing begins. Skipping this step means the polisher is working on an uneven surface, which produces uneven gloss and a seam that shows under light.
Removing Tool Marks and Damage
If a slab comes in with deep saw blade scratches, grinding wheel marks from a previous job, or chips from handling, the grinder removes that material fast. You are essentially resetting the surface to a clean starting point before the polishing sequence begins.
What to Look for in a Shop-Grade Wet Grinder
Not every angle grinder with a water attachment qualifies as a shop-grade wet grinder. There are specific features that matter for fabricators doing this work daily.
-
High RPM motor (10,000+ for granite): Lower RPM models lack the cutting speed to work granite efficiently. The ST-358 runs at 10,000 RPM with a 570W motor.
-
5/8-11 arbor: Standard thread for U.S. stone diamond wheel and disc systems. Compatibility is non-negotiable.
-
Center water feed: Integrated water delivery keeps cooling consistent. External setups work but create more variables to manage.
-
Side exhaust: Keeps exhaust air and moisture away from the work area. Important for control and visibility.
-
Rear exhaust design: On the ST-358, rear exhaust positioning prevents exhaust from interfering with the work surface or the operator's line of sight.
-
5-inch disc capacity: Handles both standard 4-inch and larger 5-inch diamond wheel attachments for different applications.
-
Built for stone, not adapted: General-purpose angle grinders can work. Tools built specifically for the stone market, like the Samurai line, handle the wet, high-cycle demands of a fabrication shop differently.
The Samurai ST-358 in a Fabrication Shop Context
The ST-358 is a heavy-duty rear exhaust wet grinder built in Japan. The 570W motor delivers consistent power output at 10,000 RPM on a 5/8-11 arbor. It handles up to 5-inch diameter discs, which covers the full range of diamond wheel applications in a stone shop.
The center water feed is integrated into the tool, not an afterthought. Replacement parts, including the grinding components that see the most wear in daily shop use, are available separately for fabricators who want to maintain their tools long-term.
View the Samurai ST-358 Wet Grinder

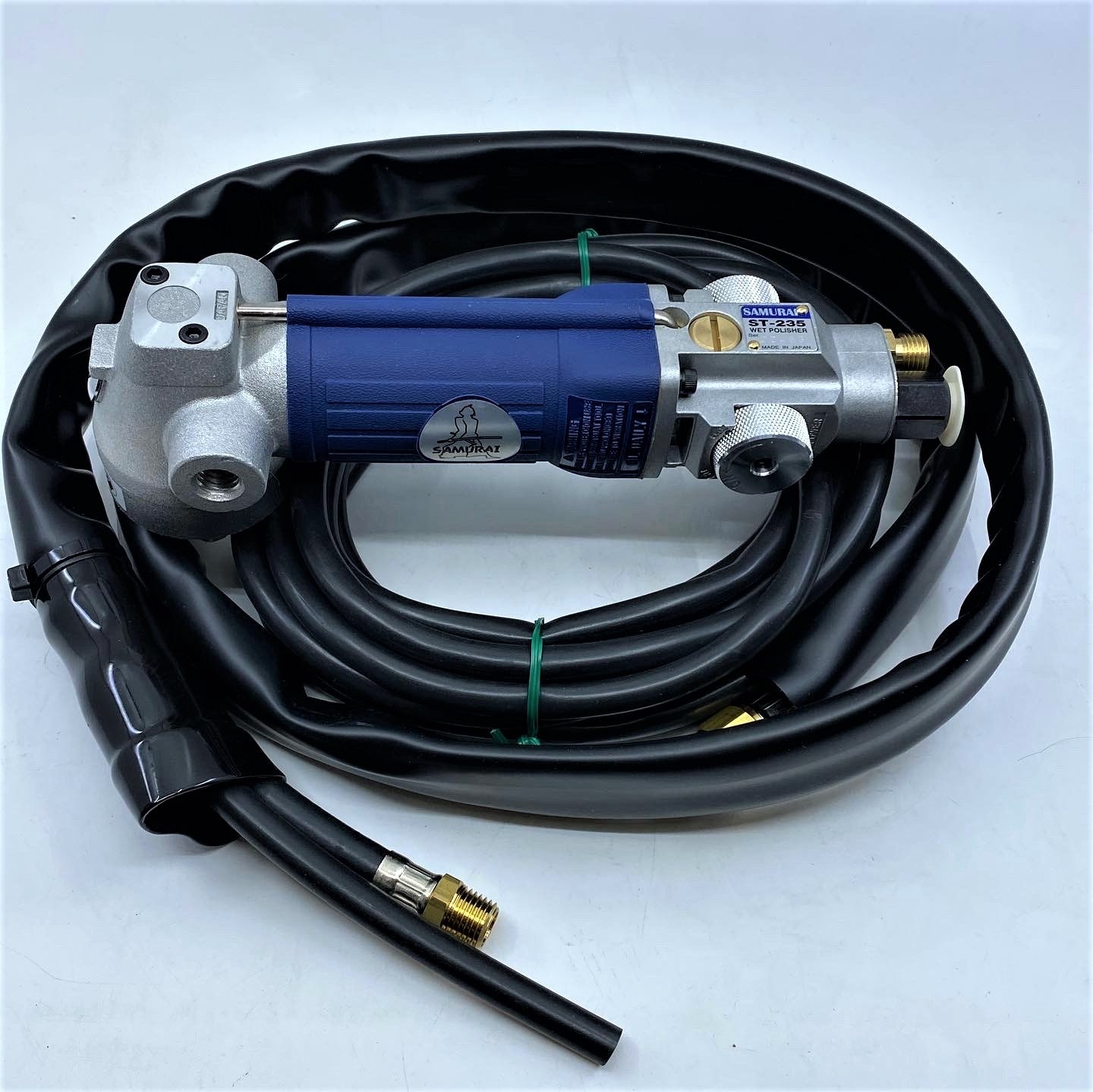

If you are building out a complete shop setup, the ST-235 wet polisher pairs directly with the ST-358. Grind with the 358, then polish with the 235. The tools were designed for the same environment.
View the Samurai ST-235 Wet Polisher
A Good Video to Watch Before You Start
If you want to see wet polishing and grinding technique in action before committing to a tool or method, this YouTube video walks through a practical wet polishing session with a stone fabrication polisher and diamond pad progression. The process is similar to what you would run after your grinding work is complete:
Quick and Easy Lapidary Rock Polishing with Stone Fabrication Wet Polisher and Diamond Pads
Frequently Asked Questions About Wet Stone Grinders
What is a wet stone grinder used for?
Wet stone grinders are used in stone fabrication for edge shaping, profile cutting, sink and faucet cutouts, seam leveling, and surface damage removal. They run at high RPM with a continuous water feed that cools the stone, flushes abrasive slurry, and suppresses silica dust.
What is the difference between a wet grinder and a dry grinder?
A wet grinder uses water continuously during the grinding process to cool the stone and manage dust. A dry grinder works without water but generates heat and airborne silica dust. For granite and natural stone fabrication, wet grinding is strongly preferred for both finish quality and workplace safety.
What RPM should a stone grinder run?
For granite and hard stone applications, professional wet grinders typically run at 8,000 to 11,000 RPM. The Samurai ST-358 runs at 10,000 RPM. Higher RPM is what gives you the material removal speed needed to shape stone efficiently.
Can I use a wet stone grinder for polishing?
Not effectively. Grinders run at too high an RPM for the controlled progression polishing requires. Running diamond polishing pads at 10,000 RPM destroys the pads and burns the stone surface. Polishing requires a separate tool, like the Samurai ST-235, running at 1,500 to 4,500 RPM.
What is the 5/8-11 arbor?
The 5/8-11 is the standard arbor thread for stone diamond wheel systems in the United States. It is what connects your grinding disc or cup wheel to the tool spindle. Compatibility between your grinder and your diamond wheel attachments requires matching threads.
How does the water feed work on a wet grinder?
The center water feed runs water through the spindle and out at the contact point between the diamond wheel and the stone surface. This keeps the cooling and slurry flushing happening exactly where the cutting action is. External water setups can work but are harder to manage consistently.
How long do diamond cup wheels last on granite?
Lifespan depends heavily on the hardness of the stone, RPM, pressure, and water volume. On hard stones like Absolute Black granite, cup wheels wear faster than on softer materials. Running adequate water flow and consistent pressure extends wheel life significantly.
Is silica dust from dry granite grinding dangerous?
Yes. Crystalline silica dust from dry grinding of granite is a known respiratory hazard. Repeated exposure causes silicosis, a serious and irreversible lung condition. Wet grinding virtually eliminates airborne silica by trapping particles in the water slurry. Shops doing regular grinding work should be using wet tools as the default practice.
Do I need both a wet grinder and a wet polisher?
For a complete fabrication operation, yes. The grinder handles material removal and shaping. The polisher handles the progressive grit sequence that produces the finished surface. Trying to do both jobs with one tool means compromising one stage or the other.
What is the Samurai ST-358 and what does it do?
The Samurai ST-358 is a pneumatic wet grinder made in Japan, designed specifically for the stone fabrication market. It runs at 10,000 RPM with a 570W motor, 5/8-11 arbor, center water feed, and rear exhaust. It is built for daily shop use on granite, quartz, marble, and engineered stone.
